1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength

1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength

Наименование марки:	HanWei
Номер модели:	HW-B
МОК:	1 Set
цена:	USD / Set
Условия оплаты:	T/T
Способность к поставкам:	2000 Sets / year

Подробная информация

Описание продукта

Подробная информация

Place of Origin:

Shenzhen, China

Сертификация:

Laser Power:

1000W

Core Diameter:

200 μm / 0.22 NA

Welding Materials:

Copper / Gold / Silver

Cooling Method:

Water Cooling

Wavelength (nm):

445nm

Connection:

D80 / QBH

Head Structure:

T / F/ Y

Operating Temperature (℃):

5-40

Power Stability:

± 0.5 %

Gas Type:

Co-axial / Side Gas

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Описание продукта

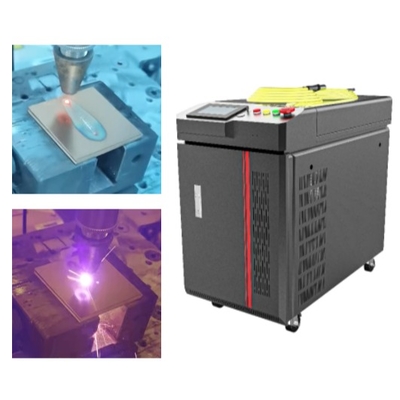

1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength

1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength Description:

Hanwei's blue laser welding machine, developed in parallel with top-tier products from Europe, America, and Japan, integrates independently innovated core technologies. These encompass a proprietary blue laser source, a specialized blue laser control system, and a series of dedicated blue laser welding heads—innovations that mark a new era in laser welding for highly reflective materials.

Engineered specifically for welding reflective metals like copper, silver, and gold, this system leverages the unique ultra-high absorption characteristics of the blue laser spectrum. Reflective materials absorb over 70% of blue wavelengths, bringing about notable advantages in processing high-reflectivity substrates: it allows for spatter-free operation, exceptional stability, superior weld quality, and the pioneering capability to achieve double-sided formation through single-sided welding.

1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength 0

1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength Features:

1.Self-developed, designed and manufactured the complete chain from laser source,control system and laser welding.

2.Post-welding surfaces exhibit smoothness, fullness, and an aesthetically refined appearance.
3.The welding process generates minimal spark spatter while delivering high-quality welds with exceptional consistency. 4.head.Used for welding materials with high reflectivity to laser such as copper, gold, silver, etc.

1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength Technical Parameters:

Model	HW-B
Laser Power	1000 W
Wavelength(um)	445 nm
Pulse Rising Time (μs)	＜ 20
Laser Beam	Stationary / Wobble
Head Weight	4 Kg
Machine Size	1000450850mm
Laser Core	50um / 100um
Cooling Method	Water Cooling
Head Option	Blue Laser Hybrid
Modulation Frequency (Hz)	1-10000
Power Stability	± 0.5 %
Core Diameter	200 μm / 0.22 NA

1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength Application:

1.New Energy Resources - Battery Busbar with Copper or Aluminium.
2.Computer,Communication,Consumer Electronics - 3C Industry.

3.Semiconductor Industry.
4.Automobile industry.
5.Jewelry industry.

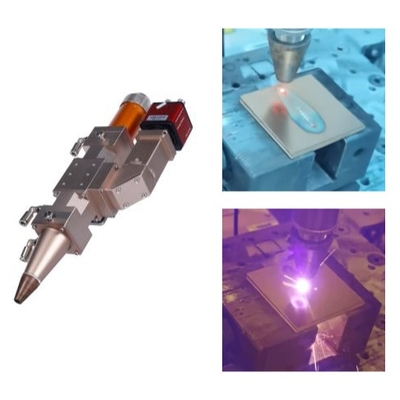

1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength Sample:

Shen Zhen HanWei Laser Enterprise and Feature:

Founded in 2016 and based in Shenzhen, Hanwei Laser Equipment Co., Ltd. is a national high-tech enterprise honored as "specialized, sophisticated, distinctive, and novel"—one of the few global enterprises of its kind. With a team of 50 committed employees, the company focuses on the entire laser welding industry chain, specializing in the research and development, production, and sales of various welding lasers, laser control systems, laser optical systems, and laser welding technologies.

Hanwei Laser is dedicated to providing cutting-edge laser welding technology and high-quality equipment to international laser integration companies. Its product range includes both desktop and portable laser devices, integrating advanced technologies such as fiber, pulsed or continuous-wave, blue laser, diode laser, and hybrid laser—all customized to meet customers' unique needs. Additionally, the company offers tailored solutions for specific applications, as well as training and support services, ensuring that clients can fully leverage the capabilities of their laser systems.

Adhering to the mission of making world-class welding technology available to all integrators, Hanwei Laser has built a strong global presence. It operates branches and subsidiaries across Europe, North America, Asia, and the Middle East, serving clients worldwide.
